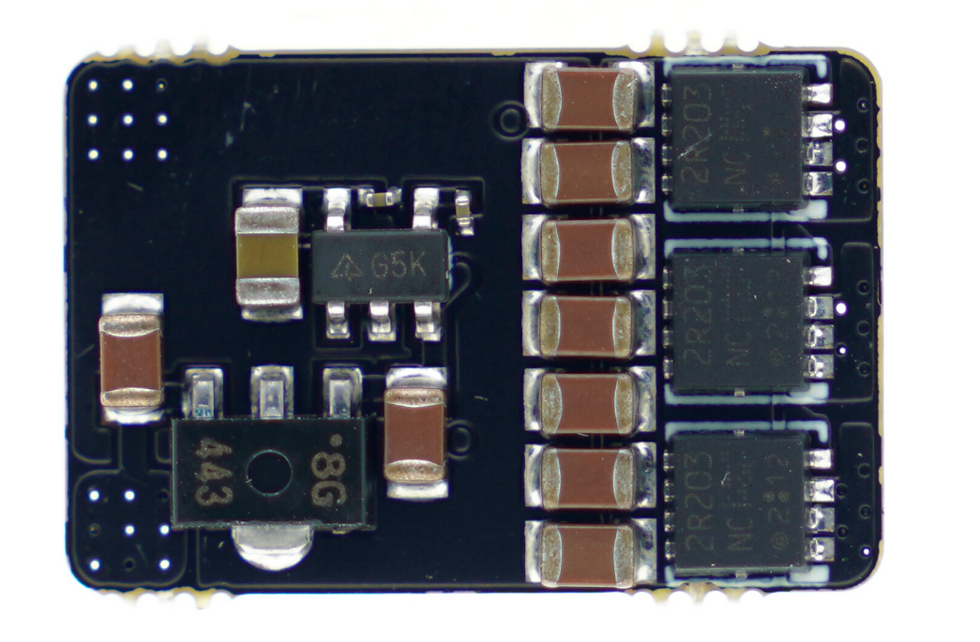

NeutronRC 70A-G071 V2 2-8S AM32 Dshot1200 X-Class Single ESC

1. Using STM32G071, A 32-bit high-performance processor dedicated to brushless motors, with a running frequency of up to 64M. 2. Onboard 11 PCS TDK 22uF 35V Low ESR capacitors, with a total capacity of 240uF, low power ripple and high reliability. 3. Imported Infineon aerospace-grade gold seal MOS, <1mR internal resistance, greater overcurrent capability and heat dissipation capability. 4. This new MOSFET package is called DirectFET 5. The PCB adopts 8 layers of 4*4+4*3OZ copper thickness, with a total thickness of 28OZ, TG-180 board, with strong heat resistance and overcurrent capability. 6. Support return voltage and current data to flight controller. 7. Onboard colorful RGB LED, customized personalized color.

8. Firmware: AM32

Uses:

1. 15Kg Combat robot drive esc

2. 8kg Combat robot drive esc

3. Drones

4. Can be modified to be used as brushed esc. Email at sales.4dsystems@gmail.com for support related to this.

Specifications

Size: 35*18*5mm Weight : 7.1g Continuous current: 70A Maximum current (5 seconds): 110A

Input Voltage: 2-8S LiPo Processor: STM32G071

BEC: NO

Drive Signal Support: Dshot150-1200/MultiShot/OneShot/PWM

Current Sensor: Support Telemetry Passback: Support Firmware Version: AM32
