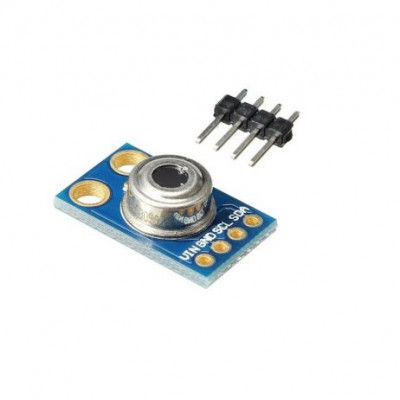

MLX90614 ESF Non-Contact Human Body Infrared Temperature Measurement Module

The MLX90614 ESF is an Infra-Red thermometer for non-contact temperature measurements. Both the IR sensitive thermopile detector chip and the signal conditioning ASIC are integrated into the same TO-39 can. The Integrated MLX90614 GY-906 is a low noise amplifier, 17-bit ADC, and powerful DSP unit thus achieving high accuracy and resolution of the thermometer.
The user can configure the digital output to be PWM. As a standard, the 10-bit PWM is configured to continuously transmit the measured temperature in the range of -20 to 120 C, with an output resolution of 0.14 C.
Application:
High precision non-contact temperature measurements
Thermal Comfort sensor for Mobile Air Conditioning control system
The temperature sensing element for residential, commercial and industrial building air conditioning Windshield defogging
The automotive blind angle detection
Industrial temperature control of moving parts
Temperature control in printers and copiers
Home appliances with temperature control
Healthcare
Livestock monitoring
Movement detection
Multiple zone temperature control up to 127 sensors can be read via common 2 wires
Thermal relay/alert
Body temperature measurement

Features:
Works from 3.3V to 5V input, Module has power regulator IC built-in.
Standard I2C interface with built 2xpull upresistors
When measuring the temperature, please maintain a measuring distance of 1 cm
Small size, low cost
Easy to integrate
Factory calibrated in a wide temperature range: -40 to 125 C for sensor temperature and -70 to 380 C for object temperature.
High accuracy of 0.5C over the wide temperature range (0..+50 C for both Ta and To)
Medical accuracy of 0.1C in a limited temperature range available on request
The measurement resolution of 0.01C
SMBus compatible digital interface for fast temperature readings and building sensor networks
Customizable PWM output for continuous reading
Simple adaptation for 8 to 16V applications

Package Includes:
1 x MLX90614-ESF GY-906 Non-Contact Human Body Infrared Temperature Measurement Module
